Description

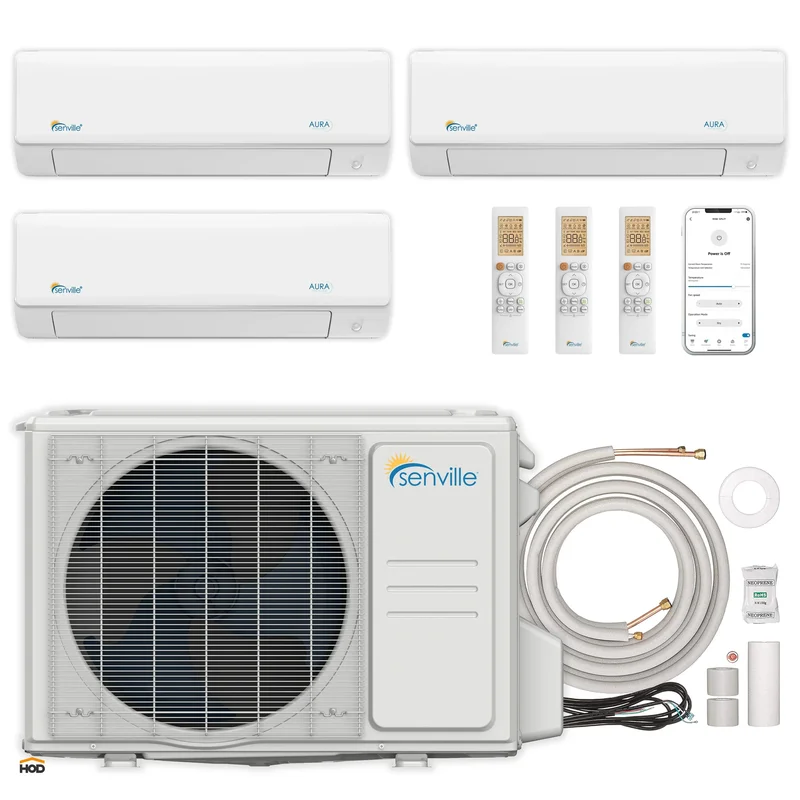

Senville SENA-30HF/T is a high-efficiency 28000 BTU tri-zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It features enhanced multi-zone climate control and ultra-quiet operation, perfect for homes or businesses seeking year-round comfort and energy savings.
Features
- 23 SEER2 ENERGY STAR – Save up to 50% on energy costs annually.
- Heating down to -30°C (-22°F) – Reliable performance in extreme cold.
- Alexa Enabled Smart Control – Control via voice or app anywhere.
- Ultra-Quiet Operation – Whisper-quiet for bedrooms & offices.
- Recommended for 1300–1500 sq. ft. – Great for multiple zones or large spaces.
- Professional Installation – Required to maintain warranty coverage.
- Smart Home Integration with Alexa – Control your Senville system with Alexa or the app from anywhere. Create schedules, adjust settings, and enjoy convenience and energy savings remotely.
- ENERGY STAR Certified – Save up to 50% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
- Cold Climate Heat Pump – Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
- Diagnostics & Leak Detection – Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
- 10-Year Warranty – Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
- Installation Kit + Accessories Included – Includes a complimentary Installation kit. System is pre-charged with R454B refrigerant for up to 75 ft. Professional installation is required to maintain warranty coverage and optimal performance.
What’s Included
- 3 Indoor Units (various BTU combinations)
- Outdoor Unit
- Wireless Remote Controls
- Alexa USB Kit
- Installation Kits (x3)
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
| Condenser | |
| Outdoor Dimensions (WxDxH) (in.) | 37.24 x 16.14 x 31.89 in |
| Outdoor Weight | 168.43 lbs |
| Outdoor Air Flow (Max) CFM | 2148.4 |
| Outdoor Noise Level dB | 61 |
| Technical Specifications | |
| Model Number | SENA-30HF/T |
| Style | Ductless Mini Split AC With Heat Pump |
| Number of Zones | 3 |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 23 |
| EER2 | 12.5 |
| Cooling Capacity (BTU) | 27000 |
| Cooling Range (BTU) | 7200~37000 |
| Cooling Input Range (W) | 500~3620 |
| Cooling Current Range (A) | 4~16 |
| Heating Capacity (BTU) | 27000 |
| Heating Range (BTU) | 8400~36000 |
| Heating Input Range (W) | 500~3400 |
| Heating Current Range (A) | 4~15 |
| HSPF2-4 | 10.5 |
| HSPF2-5 | 8.5 |
| COP W/W | 3.8 |
| Minimum Circuit Ampacity (A) | 30 |
| Max. Fuse (A) | 35 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 120.61 oz |
| Refrigerant Pre-charge | 75 ft |
| Thermostat Type | Remote Control |
| Alexa | Enabled |
| Warranty | 10 Years Compressor / 5 Years Parts |
| Senville Catalogue |
