Description

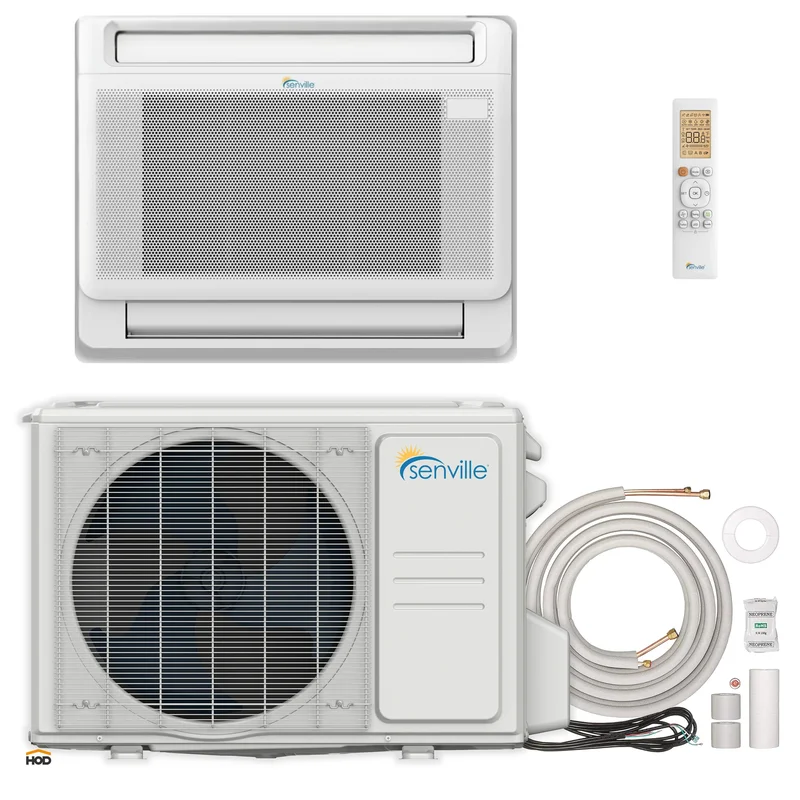

Senville SENA-12HF/IF is a high-efficiency 12000 BTU floor mount ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.
Features
- 25 SEER2 ENERGY STAR – Save up to 40% on energy costs annually.
- Ultra-Quiet Operation – Whisper-quiet for bedrooms & offices.
- Heating down to -30°C (-22°F) – Reliable performance in extreme cold.
- Professional Installation – Required to maintain warranty coverage.
- ENERGY STAR Certified – Save up to 40% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
- Cold Climate Heat Pump – Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
- Diagnostics & Leak Detection – Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
- 10-Year Warranty – Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
- Installation Kit + Accessories Included – Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.
What’s Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Installation Kit
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
| Condenser |
|
| Dimensions (WxDxH) (in.) |
31.69 x 12.99 x 21.81 |
| Weight |
72.75 Lbs |
| Air Flow (Max) CFM |
1471.5 |
| Noise Level dB |
55.5 |
| Minimum Outdoor Heating Temperature |
-22°F / -30°C |
| Air Handler |
|
| Dimensions (WxDxH) (in.) |
31.26 x 7.87 x 24.45 |
| Weight |
32.85 Lbs. |
| Air Flow (Turbo/H/M/L) CFM |
441.4 / 376.7 / 323.7 / 188.4 |
| Noise Level (Turbo/H/M/L) dB |
44 / 40.5 / 37.0 / 26.5 |
| Technical Specification |
|
| Style |
Floor Mount Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) |
208/230V, 1Ph, 60Hz |
| Voltage Range |
187-253 |
| SEER2 |
25 |
| EER2 |
12.5 |
| Cooling Capacity (BTU) |
12000 |
| Cooling Range (BTU) |
3700~14000 |
| Cooling Input Range (W) |
190~1150 |
| Cooling Current Range (A) |
1.5~5 |
| Heating Capacity (BTU) |
12000 |
| Heating Range (BTU) |
4400~16100 |
| Heating Input Range (W) |
260~1350 |
| Heating Current Range (A) |
1.4~5.9 |
| HSPF2-4 |
10.5 |
| HSPF2-5 |
8.3 |
| COP W/W |
3.88 |
| Minimum Circuit Ampacity (A) |
15 |
| Max. Fuse (A) |
15 |
| Moisture Removal (L/H) |
1.48 |
| Refrigerant Type / Charge oz |
R454B / 35.27 |
| Refrigerant Pre-charge |
25 Ft. |
| Connection Wiring |
14*4 AWG |
| Thermostat Type |
Remote Control |
| Warranty |
10 Years Compressor / 5 Years Parts |
