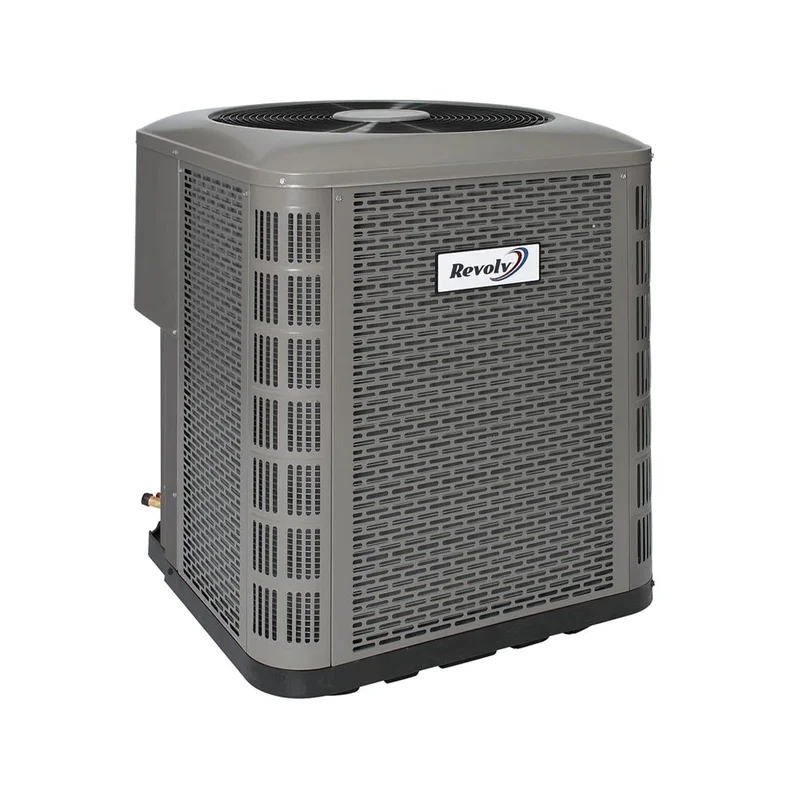

Revolv 4 Ton 14.3 SEER2 R-454B Mobile Home Heat Pump Condenser-Quality Guarantee

Description

The Revolve HSH4ME Series Mobile Home Heat Pump offers exceptional performance. The unit, when combined with our engineered coils or air handlers, offers a full line of quality, split system cooling equipment.

Standard Features:

• Models Offer Full Service Valves: These brass valves are easily accessible and simplify servicing of the refrigeration system. Charged with refrigerant for 20 feet of lineset.
• Patented Hot Gas Bypass Defrost – Ensures that outdoor coil defrosts every time and only when necessary.
• Designed Using Galvanized Steel: A powder-coated paint that eliminates sharp edges and reduces corrosion, fading, chipping and scratching. It passes 950 hours of salt spray per ASTM Std. B117.
• Composite Base Pan – Absorbs sound and is corrosion resistant. Composite is also stronger and lighter than steel.
• Designed for Manufacturing Housing – The outdoor thermostat required by HUD is factory installed.
• Quality Compressor: State-of-the-art Scroll compressor is standard equipment offering superior comfort and efficiency.
• Removable Top Grille Assembly – Allows ease of service from the top without disconnecting fan motor leads.
• Suction Accumulator and Crankcase Heater – Protection from liquid flood back and future compressor failures.
• Hot Gas Muffler – Reduces compressor noise and vibration.
• Low Pressure Switch – Loss of charge protection ensures long compressor life. Auto-reset feature prevents nuisance service visits.
• High Pressure Switch – Protects against abnormally high system pressures. Auto-reset feature prevents nuisance service visits.
• Liquid Line Filter Drier – Included with unit and field installed.
• One-Piece Top/Orifice – Designed for maximum airflow and quiet operation.
• Easy Compressor and Control Access – Designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the side of the unit.
• All-Aluminum Coils – Aluminum coils in all models which provides high corrosion resistance.
• Powder Coated Full Metal Jacket: Will never rust and protects the coil from being damaged by lawnmowers, hail etc.
• Common Suction Service Port – This port allows the contractor to read the suction pressure in all modes of operation without removing any panels, saving time and increasing serviceability.
• Five Minute Restart Time Delay – When the unit shuts down, a five minute delay keeps the unit from restarting, eliminating the highest cause for compressor failure.
