Description

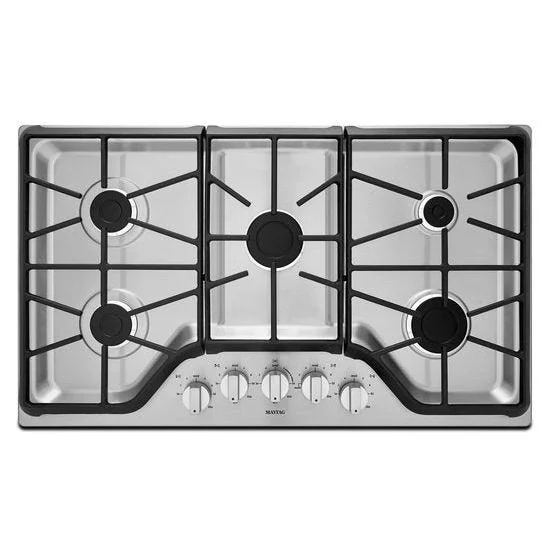

Features15,000-BTU Power™ BurnerExclusive burner that provides maximum power and cooking speed, to obtain precise and consistent results in all types of dishes.
Heavy-duty DuraClean™ continuous cast-iron grates10 Year Limited Parts WarrantyWith a 10-year limited parts warranty on the cooktop burners and cast-iron metal grates, we built these cooktops tough enough to keep cookin’ for , Engineered, and Assembled in the USAFrom Tennessee to you, these cooktops are designed, engineered and assembled in the BurnerThe simmer burner provides 800 to 5,000 BTUs of precise, adjustable heat to give your cooktop both a full-power simmer burner and warming setting all in ControlsFront controls keep your cooktop knobs close at hand so you can manage your meals without breakin’ a
| ADA Compliant | ADA Height and Side Reach Compliant |
| UL | Yes |
| Prop 65 | CA |
Details
| Fuel Type | Gas |
| Installs Over Built-In Oven | Yes |
| LP Convertible | Yes – Kit Included |
| Power Outage Compatible | Yes |
| Cooktop Type | Standard |
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Stainless/Porcelain Coated Steel |
| Digital Display | No |
Element/Burner Details
| Center Rear Element-Burner Type | Power™ Burner |
| Center Rear Element-Burner Power | 15,000 BTU |
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Standard |
| Left Front Element-Burner Power | 9,100 BTU |
| Left Front Element-Burner Type | Sealed Burner |
| Left Rear Element-Burner Power | 9,100 BTU |
| Left Rear Element-Burner Type | Sealed Burner |
| Number of Cooking Element-Burners | 5 |
| Power Boost | No |
| Right Front Element-Burner Power | 12,000 BTU |
| Right Front Element-Burner Type | Sealed Burner |
| Right Rear Element-Burner Power | 5,000 BTU |
| Right Rear Element-Burner Type | Simmer |
| Automatic Pan Detection | No |
| Number of Grates | 3 |
Exterior Details
| Knob Color | Stainless Steel |
| Knob Type | Dishwasher-Safe Plastic |
Grate Details
| Grate Details | Cast Iron Grates , Continuous , Dishwasher Safe , Matte Finish |
| Number of Grates | 3 |
Dimensions
| Cutout Depth Max | 20 in |
| Cutout Height | 5.25 in |
| Cutout Depth Min | 19 in |
| Cutout Width Max | 35.25 in |
| Depth | 21 in |
| Cutout Width Min | 33.875 in |
| Gross Weight | 68 lbs |
| Height | 3.6875 in |
| Net Weight | 60 lbs |
| Width | 36 in |
| Common Size | 36 in |
| Maximum Height | 4 in |
| Minimum Height | 3.375 in |
Controls
| Control Location | Front |
| Control Type | Knobs |
Ventilation Details
| Downdraft Vent | No |
Cooktop Details
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Stainless/Porcelain Coated Steel |
| Digital Display | No |
| Griddle Included | N/A |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Combination Match with Oven | MEW9527 , MEW9530 |
| Installs Over Built-In Oven | Yes |
Electrical Requirements
| Power Cord Included | Yes |
| Amps | 15 |
Documents
Installation InstructionsDownload (PDF 4.6MB)
WarrantyDownload (PDF 1.0MB)
Owner’s ManualDownload (PDF 1.3MB)
Parts ListDownload (PDF 708.0KB)
Quick Reference SheetDownload (PDF 625.0KB)
Dimension GuideDownload (PDF 2.8MB)
Installation Oven and Cooktop CombinationsDownload (PDF 616.0KB)
Instruction SheetDownload (PDF 94.0KB)
MiscDownload (PDF 5.3MB)
