Description

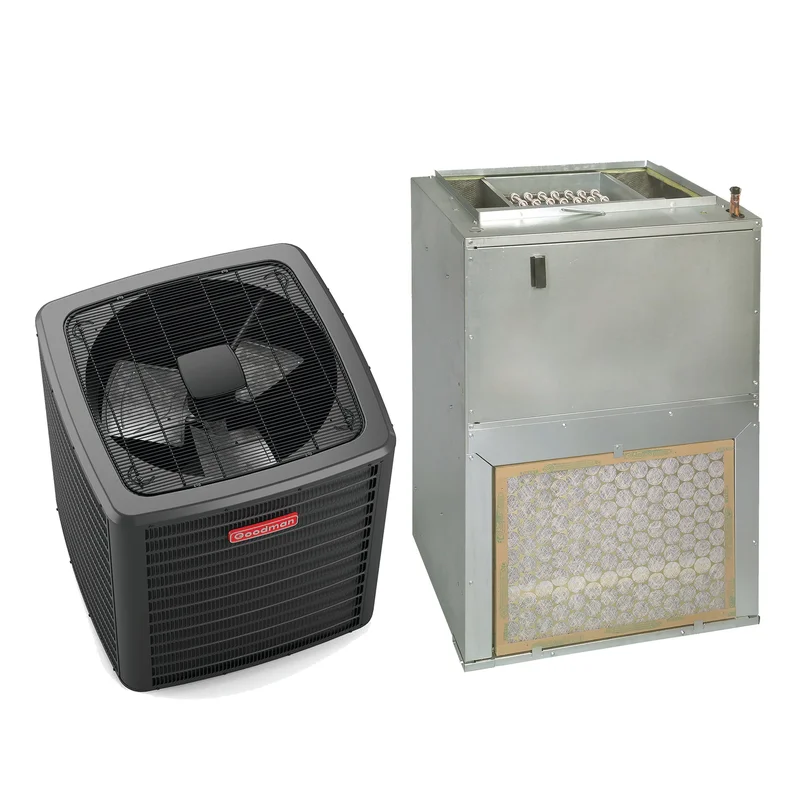

The Goodman GLXS3 Air Conditioner uses the environmentally friendly refrigerant R-32 and features the unique Goodman sound control top design for quiet operation. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.
Standard Features:
- Energy-Efficient Compressor
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Fully charged for 15 feet of tubing length
- Service valves with sweat connections and easy-to-access gauge ports
- Contactor with lug connection
- Ground lug connection
- ARI Certified; ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Steel louver coil guard
- Rust-resistant coated screws
- Single-panel access to controls with space provided for field-installed accessories
NOTE TO CUSTOMER: To ALL interested parties, the sale of this 13 Seer Rated product is limited to the following states [AK, CO, CT, ID, IL, IN, IA, KS, ME, MA, MI, MN, MO, MT, NE, NH, NJ, NY, ND, OH, OR, PA, RI, SD, UT, VT, WA, WV, WI, WY, as well as the U.S. Territories]. If you are located in [AZ, CA, NV, NM, AL, AR, DE, FL, GA, HI, KY, LA, MD, MS, NC, OK, SC, TN, TX, VA and the District of Columbia] then you must purchase a minimum of 14 Seer Rated product in order to conform to the new EPA Regulations. Please contact us at 888.474.9966 for further information.
The Goodman AWST Air Handler (front-return) is designed to be vertically wall or stud mounted. This unit features a check flowrater and direct drive, multi-speed motor. The AWST is housed in a fully insulated, galvanized-steel cabinet.
Standard Features:
- AWST Models: Equipped with a fully adjustable TXV
- Designed for use with R-32 Refrigerant
- Direct-drive, multi-speed motors allows air volume variation for heating/cooling
- Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- Aluminum tubing coils on all models
- Factory-installed pull-type disconnect
- Factory installed R-32 sensor designed for the lifespan of the coil.
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack (filter included)
- Large chassis (2.5- and 3-ton units)front return only
- Small chassis (1.5- and 2-ton units)front or bottom return
- Wall-hanging bracket provided
- AHRI Certified; ETL Listed
