Description

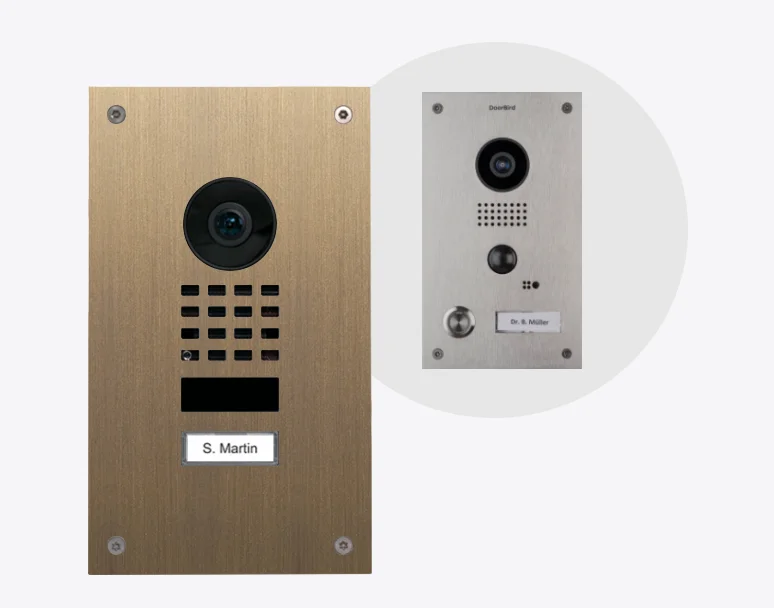

DoorBird D1101UV IP Video Door Station in Real Burnished Brass
Upgrade for DoorBird D201/D202 to D11x Technology
Real burnished brass
(GTIN/EAN: 4260423880382, P/N: 423880382)
Highlights
- LAN connection (PoE capable)
- 2-way audio
- Ultra-wide angle lens, 1080p, night vision, IR LEDs
- 4D motion sensor, RFID reader
- 1 freely configurable bistable switching relay
Features
- Open API
Local interface for integration with third-party systems and SIP - Video and audio call
On smartphones, tablets (iOS, Android), IP and landline phones (SIP) - Smart Transmission Mode (STM)
Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G - Smart Home & NVR compatible
Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others - Microphone
Clear voice transmission - Automatic door buzzer
For use in medical offices and office environments - Free visitor history
Store still images for free, optional video recording available - Individual action schedules, e.g.:
Switch relay 1 for automatic door release Mon-Fri from 9 am until 4 pm when the call button is pressed
4D motion sensor switches on external lamp between 9 pm and 6 am - Geofencing
Automatic door and gate opening when returning home - Night vision
With Infrared LEDs - HDTV Video
Ultra wide-angle, hemispheric lens, 180° - Light sensor
For night vision mode - One freely configurable bistable latching relay
Control one door or one gate via App
Status configurable via App: temporary or permanent circuit - Easy self-install
Quick installation via QR code scan - Call button
With backlit nameplate - Motion sensor with 4D technology
Distance up to 6 m (19.7 ft) adjustable via App (interval: 1 m/ 3.3 ft) - Noise reduction and echo cancellation (AEC, ANR)
- Easy connection to the network
Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data) - Bluetooth low Energy (BLE)
Supports A8007 Bluetooth Remote Control
For access control, compatible external sensors and smart locks
| Front panel | 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and with Bronze-Finish, V4A |
| Mounting housing (backbox) |
Not included, use of an already installed D201/ D202 housing is assumed. |
| Call Button | Illuminated |
| Nameplate | Plastic Metal cover plate and engraving available separately |
| Power supply | 15 V DC (max. 15 W) or Power ov |
| Weight | 778 g |
| Connectors |
|
| Protection Class | IP65, IK08 |
| Approvals | CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471 |
| Dimensions | 215 x 125 x 28 mm (H x W x D) 8.46 x 4.92 x 1.10 in (H x W x D) |
| Operating conditions | -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing) |
| Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 – 240 V AC to 15 V DC) 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
| DoorBird Brochure |
| Datasheet |
| App User Manual |
