Description

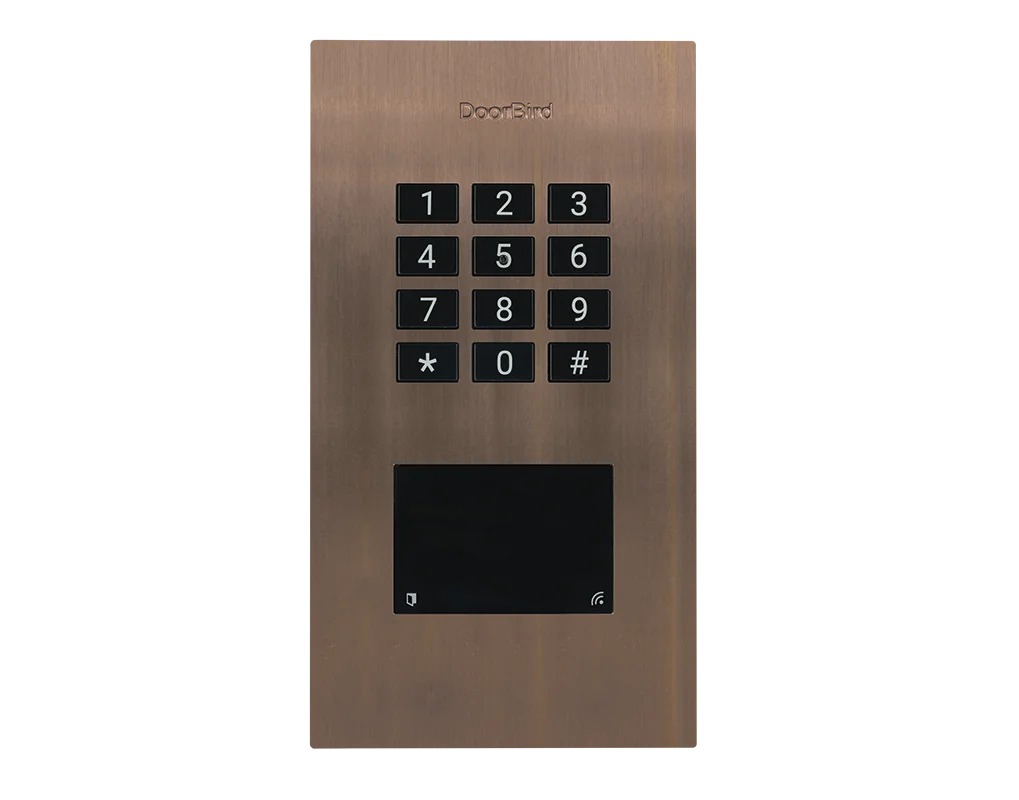

DoorBird A1121 Flush-Mount IP Access Control Device in Bronze
Multi-technology access control system and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms
Bronze-finish as PVD coating, stainless steel, brushed
(GTIN/EAN: 4260423872073, P/N: 423872073)
Highlights
- Flush-mount housing included
- WiFi / LAN connection (PoE capable)
- Keypad
- 125 KHz and 13.56 MHz RFID reader
- Tamper sensor
- Wiegand interface
- 2 freely configurable bistable switching relays
Features
- Three separate access control devices combined:
Keypad
RFID Reader
Bluetooth low Energy (BLE) - Keypad Module
Configurable via App
Up to 500 individual PIN codes
Individual events (e.g. trigger a relay, HTTP(s) request) - RFID sensor
125 KHz
13.56 MHZ - Bluetooth low Energy (BLE)
For access control, compatible external sensors and smart locks - WiFi-capable
- Two freely configurable bistable switching relay
- Wiegand interface
- Manipulation sensor
| Front panel | 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and V2A with bronze and titanium finish, DB 703, RAL 7016, Graphite Black (Raven Polar) |
| Mounting housing (backbox) |
Stainless steel |
| Mounting type | Flush-mounted. Surface-mounted and retrofit version sold separately |
| Power supply | 15 – 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Keypad module |
12 keys, illuminated, configurable via App, e.g.
|
| Tamper Sensor | Integrated |
| Weight | 465g |
| Connectors |
|
| Weatherproof | Yes, IP65 |
| Approvals | IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368 |
| Dimensions | 128 x 62 x 28 mm (H x W x D) 5.04 x 2.44 x 1.1 in (H x W x D) |
| Operating conditions | 152 x 83 x 31 mm (H x W x D) 5.99 x 3.27 x 1.22 in (H x W x D) |
| Scope of delivery |
1x Main Electrical Unit 1x Front panel 1x Flush-mounting housing (backbox) 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 – 240 V AC to 15 V DC) 1x RJ45 adapter 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
| DoorBird Brochure |
| Data Sheet |
| App User Manual |
